Mountain Forged Tuner Brake (MFT) - 5/8x24 Thread

Mountain Forged Tuner Brake (MFT)

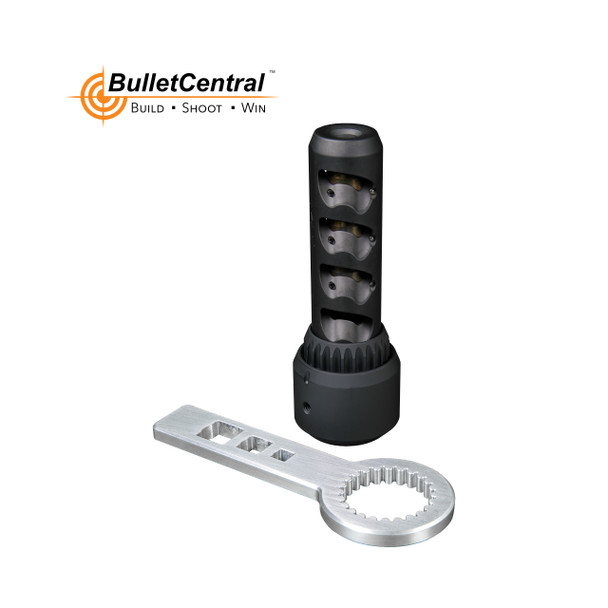

The Mountain Forged Tuner Brake (MFT) is a precision-engineered four-port muzzle brake with an integrated harmonic barrel tuner, designed for competitive shooters who demand recoil control, repeatability, and tunable accuracy. Featuring the proven 45 / 15 port geometry, the MFT significantly reduces recoil, minimizes muzzle rise, and directs blast forward-away from the shooter.

With a 24-position adjustable and locking tuner and a true self-timing design, the MFT installs easily with no permanent barrel modifications required, making it ideal for PRS, F-Class, and long-range precision rifles.

Key Features

• Integrated 24-position adjustable and locking harmonic barrel tuner
• Self-timing installation - no shims or barrel modification required
• Directional four-port muzzle brake design
• 45 / 15 port geometry for effective recoil reduction and flat tracking
• Projects muzzle blast forward and away from the shooter
• Spline-drive wrench included
• Compatible with all calibers up to and including .338 caliber magnums (select correct bore)

Fitment & Compatibility

• Fits contours up to and including Benchmark VCC contour barrels
• Maximum barrel diameter: 1.05 in (measured 1 in behind the shoulder)
• Muzzle thread: 5/8x24 UNEF 3A
• Maximum thread engagement: 0.75 in

Construction & Finish

• Material: AISI 4140 alloy steel
• Finish: DLC (Diamond-Like Carbon)

Dimensions & Weight

• Brake diameter: 1.00 in
• Tuner diameter: 1.58 in
• Overall length: 4.33 in
• Added barrel length: 2.77 in
• Weight: 11.5 oz (6.4 oz with optional delete nut)

Optional Configuration

An optional delete nut is available as an add-on or sold separately for shooters who wish to reduce overall weight or run the brake without the tuner.

Shipping Information

• Shipping weight: 1 lb
• Package dimensions: 4 x 4 x 6 in
